Mazda BT-50 payload runs from up to 887kg on a Thunder 4x4 dual cab to up to 1236kg on an XS 4x2 single cab chassis. Mazda’s online payload calculator gives the figure for your model, but trays, bull bars and towbars all come off it. A certified 3700kg GVM upgrade adds 600kg to a BT-50 4x4 from 2022.
Most BT-50 owners only discover their real payload when they put the loaded ute on a weighbridge. The brochure figure assumes a standard vehicle, and the moment a tray, canopy or towbar goes on, BT50 payload starts shrinking. Here’s how to calculate your number properly using Mazda’s own tools and a few simple steps, and how our certified Mazda BT-50 GVM upgrades give you more of it legally.
Mazda BT-50 Payload Figures
|
BT-50 model |
GVM |
Payload |
|
Thunder 4x4 dual cab, automatic |
3100kg |
up to 887kg |
|
XTR 4x4 dual cab (2021) |
3100kg |
about 1070kg from a 2030kg tare |
|
XTR 4x4 cab chassis (2025), before tray |
3100kg |
about 1190kg |
|
XS 4x2 single cab chassis, automatic |
3000kg |
up to 1236kg |
Treat these figures as starting points, because your actual Mazda BT50 payload depends on everything fitted after the vehicle left the factory.
Using the BT-50 Payload Calculator
Mazda Australia offers an online payload calculator that shows the kerb weight, GVM and payload for each BT-50 variant, and it’s the best place to start. Here’s how to turn its figure into a real world number.
- Find your base payload: Select your exact BT-50 model in the Mazda BT50 payload calculator and note the payload figure.
- Subtract fitted accessories: Take off the weight of your tray or canopy, bull bar, winch, towbar, roof rack, drawers and any extra batteries.
- Subtract people: Allow for the driver and every regular passenger.
- Subtract towball download: If you tow, take off the trailer’s towball load, up to 350kg on a BT-50.
- Weigh it to confirm: Load the ute as you travel and check it on a weighbridge, axle by axle.
What’s left is the payload you actually have for fuel above kerb weight, water, tools, food and gear.
Why Cab Chassis BT-50s Lose Payload Fast
Cab chassis models start with the highest payload, but the tray isn’t included. In CarsGuide’s test of a 2025 BT-50 XTR cab chassis, the 1190kg payload rating dropped to 891kg once the 243kg tray, a nudge bar and the towing kit were taken into account. That’s nearly 300kg gone before any tools or materials went in.
For a tradie running a steel tray with toolboxes, a ladder rack and a full load of materials, it’s easy to see how a BT-50 ends up over its 3100kg GVM on a normal working day.
How to Increase BT-50 Payload Legally
The only legal way to carry more is to raise the GVM with a certified upgrade, since heavier springs alone don’t change your rating.
|
BT-50 |
Kit |
GVM |
Extra legal payload |
|
2022 onwards |
Formula 4x4 GVM Upgrade Kit |
3700kg |
600kg |
|
2022 onwards |
Formula 4x4 F4R adjustable kit |
3700kg |
600kg |
|
2022 onwards |
Bilstein GVM Upgrade Kit |
3700kg |
600kg |
|
From 2020 as listed |
Lovells GVM Upgrade Kit |
3600kg |
500kg |
The Formula 4x4 3700kg kits also raise the axle ratings from 1450kg to 1650kg at the front and from 1910kg to 2050kg at the rear. That matters on a BT-50, because a heavy tray and towball load pile weight onto the rear axle, while a bull bar and winch load up the front.
On the cab chassis example above, a 3700kg upgrade turns 891kg of usable payload into 1491kg. Matched springs, front struts and shocks also cut rear sag and vehicle sway, so the BT-50 drives with more control when it’s working hard. See the full Mazda BT-50 GVM upgrades range.

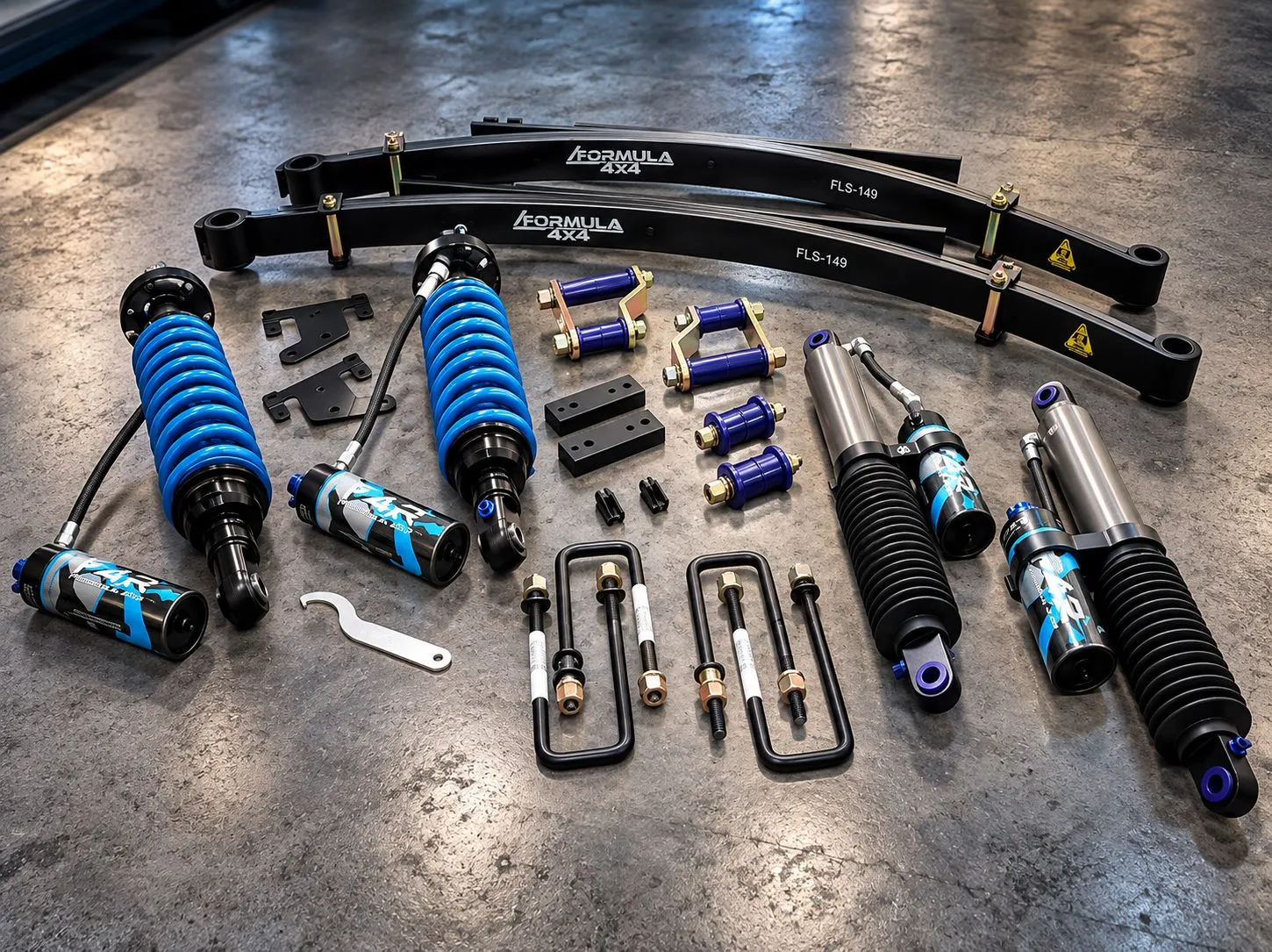

3700kg Formula 4x4 GVM Upgrade Kit
The Formula 4x4 3700kg kits also raise the axle ratings from 1450kg to 1650kg at the front and from 1910kg to 2050kg at the rear. That matters on a BT-50, because a heavy tray and towball load pile weight onto the rear axle, while a bull bar and winch load up the front.
On the cab chassis example above, a 3700kg upgrade turns 891kg of usable payload into 1491kg. Matched springs, front struts and shocks also cut rear sag and vehicle sway, so the BT-50 drives with more control when it’s working hard. See the full Mazda BT-50 GVM upgrades range.
Not Sure Where Your BT-50 Sits?
If you’d rather not do the maths yourself, book a GVM & Towing Assessment at your nearest Fulcrum Service Centre. For $90, we weigh each corner of your BT-50, check it against GVM, axle and GCM limits, and give you a written recommendation. If you tow, our guide to the Mazda BT-50 GCM explains how the trailer affects your payload.
For the factory ratings across both BT-50 generations, see our guide to the Mazda BT-50 GVM. When you’re ready to price a kit, our BT-50 GVM upgrade cost guide lists every fitted option.
FAQs
Looking for more information about the Mazda BT-50 payload? Below we answer the most commonly asked questions
What is the payload of a Mazda BT-50?
Where is the Mazda BT-50 payload calculator?
Does the tray count against BT-50 payload?
How much does a GVM upgrade add to BT-50 payload?
What is the BT-50 payload when towing?
Do accessories reduce BT-50 payload?
Carry more, legally, with a certified upgrade from our BT-50 GVM upgrades range, fitted by Fulcrum specialists Australia wide.
