N90 Hilux Suspension Upgrade: The Complete Fulcrum Guide

The best N90 Hilux suspension upgrade matches the kit to how you load and drive the truck, then has it fitted and aligned properly. Fulcrum stocks the full GUN226R, 227R range, from 2 inch lift kits and ReadyStrut coilovers to certified GVM upgrades, and fits it through our national workshop network with a free suspension check.

Toyota built the N90 Hilux around standard weights and everyday road use. The moment you add a bull bar, a winch, a canopy, drawers or a van on the towball, the factory springs and shocks start to sag, wallow and lose control. A properly matched Hilux suspension upgrade fixes that: it holds ride height under load, sharpens handling on and off road, and keeps the truck predictable when it matters. Fulcrum has been solving exactly this since 1976, and for the N90 we carry the whole range in one place and fit it for you.

Why upgrade the suspension on your N90 Hilux?

Factory suspension is a compromise. It is tuned for an unladen truck on sealed roads, so it copes with a commute and little else. Load the N90 for touring or work and three things happen: the rear squats and drops your headlight aim, the shocks fade and heat up on corrugations, and the front end dives and rolls through corners. That is uncomfortable, and it is slower and less safe when you are carrying weight or towing.

Upgrading changes the whole character of the truck. The right springs restore and hold ride height with your accessories fitted, better shocks keep the tyres planted so you get grip and control, and matched geometry parts keep the steering and tyre wear correct once the truck sits higher. You also open up clearance for larger tyres and rougher tracks. For most N90 owners the payoff is a ute that rides better loaded than the standard one does empty.

The takeaway: if you have added weight or you tour, work or tow, a matched upgrade is the single biggest improvement you can make to how the N90 drives.

What is the best suspension upgrade for a Toyota Hilux?

There is no single "best" kit, because the best setup depends on your load and your terrain. What matters is matching spring rate and shock valving to the weight you actually carry, then setting it up correctly. As a guide for the N90:

Light tourers and daily drivers who want a better ride and a modest lift are well suited to a 2 inch (50mm) lift kit with quality twin tube shocks or ReadyStruts and matched coils. Heavier tourers running a canopy, drawers and long range fuel want a constant load kit rated to their real weight. Owners who regularly run at or over the factory limit need a GVM upgrade, not just a lift. Serious off road and corrugation work is where remote reservoir shocks earn their keep, because the extra oil volume resists heat fade.

Because we carry Formula 4x4, SuperPro, Whiteline, King Springs, Polyair and Bilstein, we are not tied to selling you one brand's kit. A free suspension check lets our team weigh up how you use the truck and recommend the setup that actually fits, then fit it.

The takeaway: the best Hilux suspension upgrade is the one matched to your weight and use, and our job is to spec that for you rather than sell you a one size fits all box.

Do I need a GVM upgrade on the N90 Hilux?

If you regularly run at or over the factory GVM, yes. GVM is the legal maximum the vehicle can weigh fully loaded, and it is easy to exceed on a touring or work Hilux once you add a bar, winch, canopy, drawers, water, fuel, passengers and a load. Overloading is not just hard on the truck, it can void insurance and make the vehicle illegal.

A Fulcrum GVM upgrade lifts the legal limit with an engineered, matched spring and shock package. For the N90 we supply a 3571kg Formula 4x4 GVM upgrade, available in fixed and height adjustable versions. Every kit complies with ADR legislation and is supplied with the required certification, including a compliance plate fitted next to the factory plate stating the new approval. Fitted pricing runs from around $6,400 depending on the kit, so it is a considered upgrade, but it is the correct one for a truck that lives loaded.

There is a second reason owners choose GVM over a plain lift: the springs and valving are engineered for the heavier target weight, so the truck rides and controls properly loaded rather than being sprung for a weight it never carries.

The takeaway: if your N90 lives near or over its factory limit, a certified GVM upgrade is the legal, better riding answer, and we handle the compliance paperwork for you.

Shocks, struts and coils for the GUN226R, 227R

Shocks are the part that does the invisible work. They control how the springs move, keep the tyres in contact with the road, and manage heat on rough ground. The factory units fade quickly under load and on corrugations, which is where that vague, bouncy feeling comes from once the truck is kitted out.

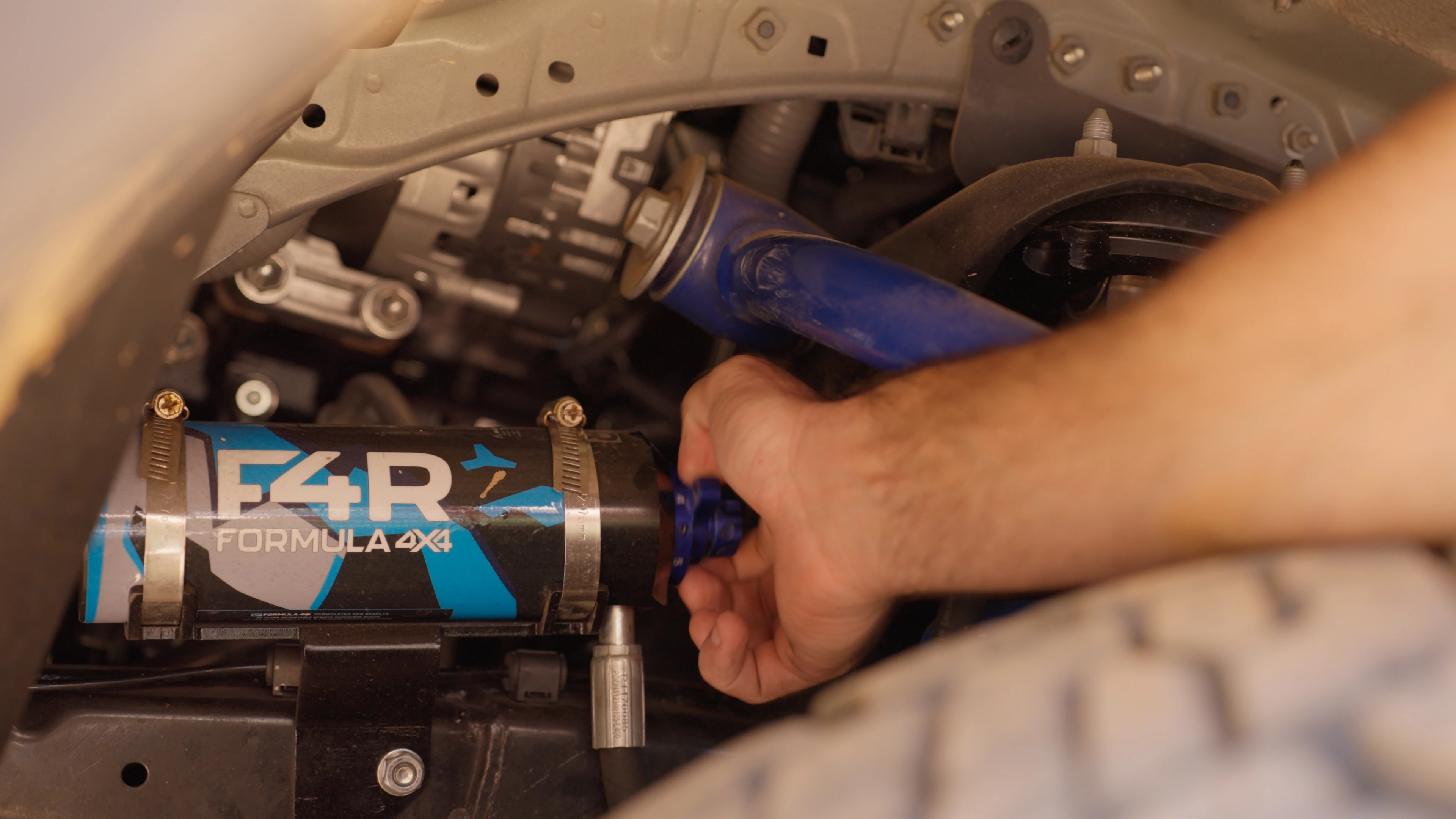

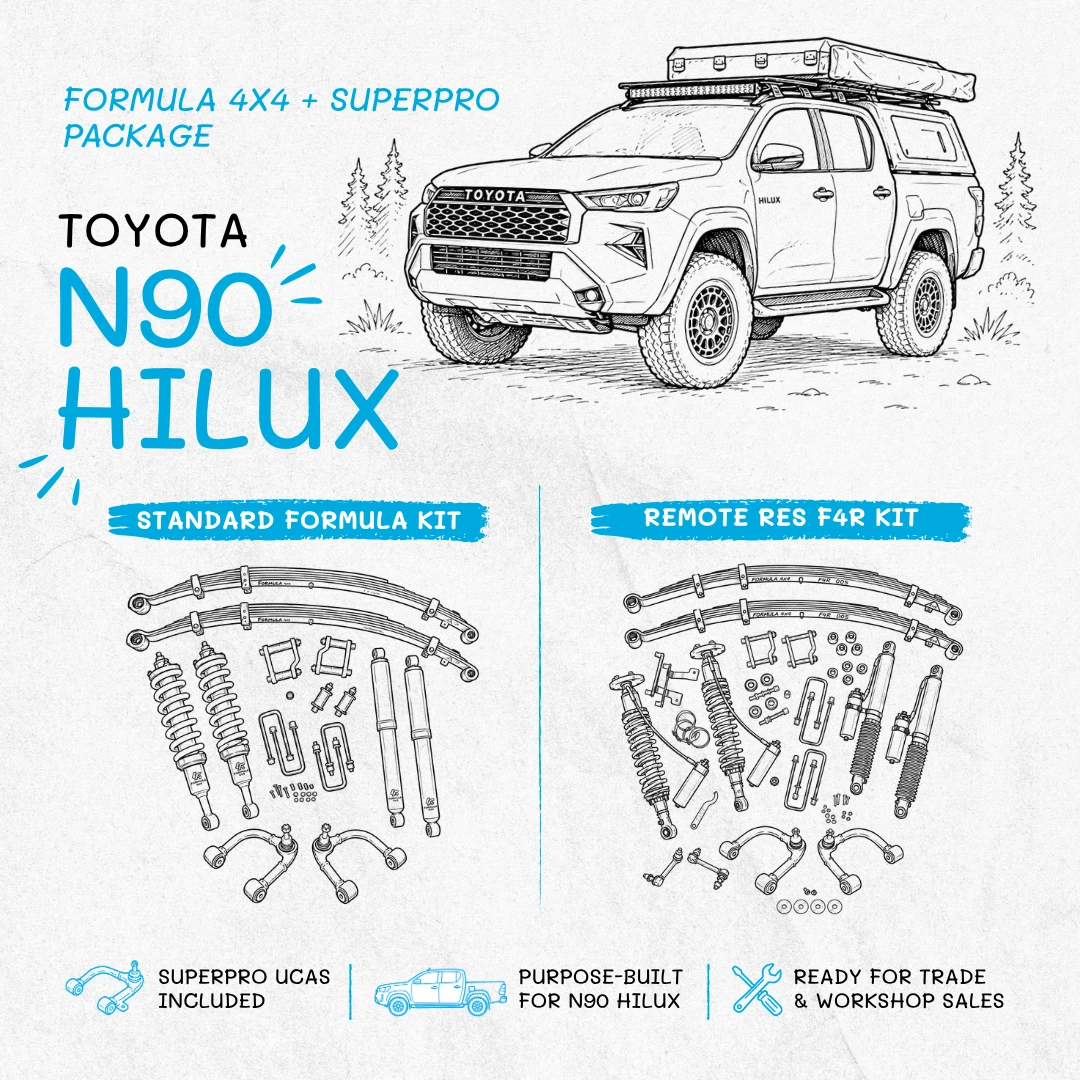

For the N90 we carry Formula 4x4 height adjustable ReadyStrut front kits and matched rear shocks, plus adjustable F4R remote reservoir shock packages for hard off road use. Front coils come in a range of rates so the lift suits your accessory load, and the rear can run heavier leaf springs or airbags to carry weight.

Matching is everything. A big shock on a soft spring, or a heavy spring on a standard shock, gives you the worst of both. Our team pairs the spring rate and valving to your weight, which is why a Fulcrum fitted setup rides better than parts bought and bolted on in isolation.

The takeaway: shocks and coils have to be matched to your load, and buying them as a fitted package from us avoids the mismatch that ruins ride quality.

Control arms, caster and camber correction after a lift

Lift the front of the N90 and you change the front geometry. Caster reduces, camber shifts, and the standard upper control arms can run out of clearance and bind at full droop. Left uncorrected you get twitchy steering, uneven tyre wear and reduced articulation. This is the step buyers most often skip, and it is the one that protects the tyres they just paid for.

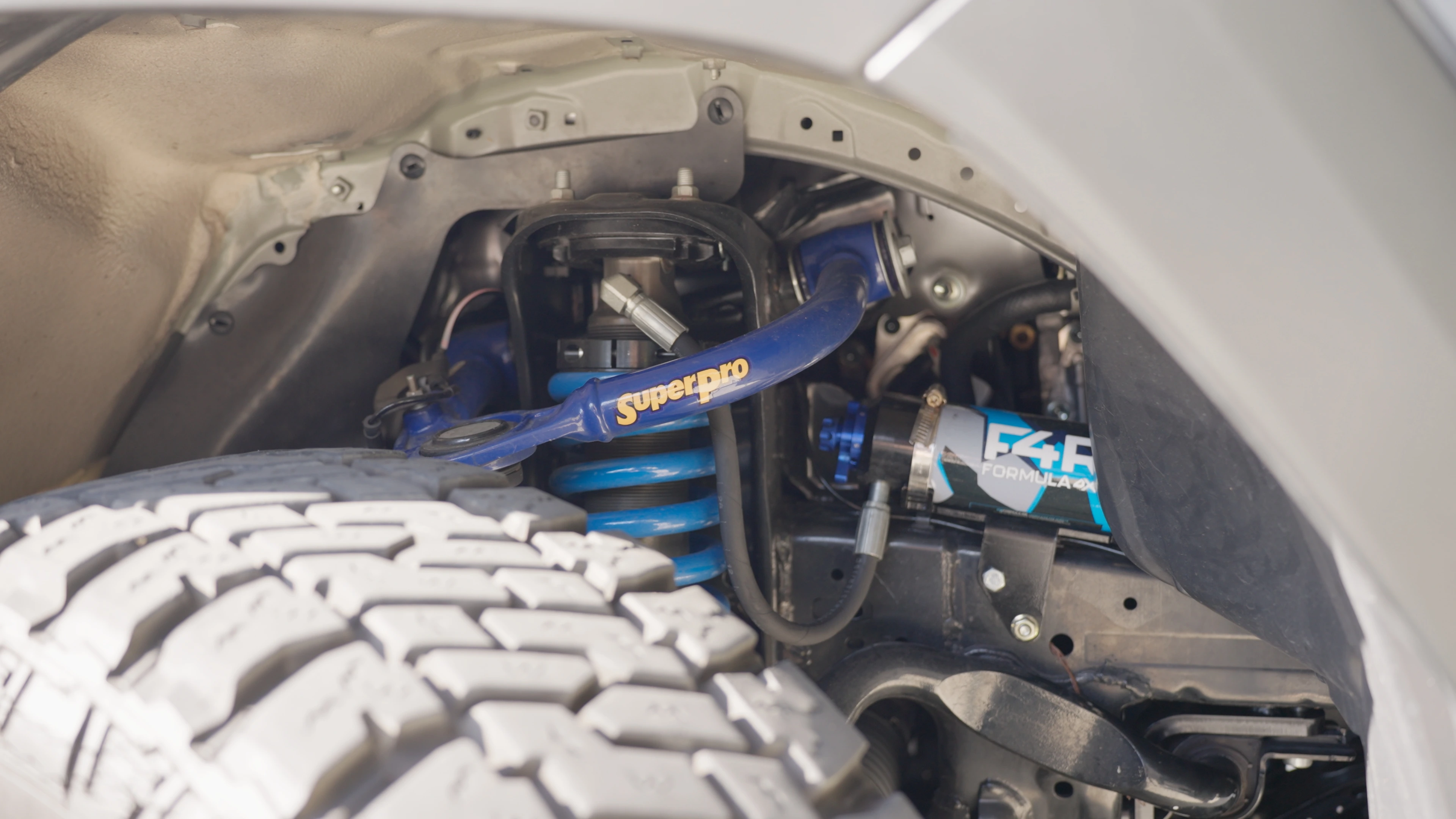

Fulcrum stocks the fix. SuperPro adjustable upper control arms restore caster and camber and add clearance for the taller ride height, with heavy duty ball joints built for off road loads. Where a full arm is not needed, camber bolt kits and alignment correction bushes bring the numbers back into range. We also carry heavy duty adjustable sway bar links to suit the lifted height.

Because we align every fitted lift, correction parts are specced as part of the job rather than sold as an afterthought. That is how the truck leaves with straight steering and even tyre wear.

The takeaway: a lift changes your front geometry, so caster and camber correction is part of doing it properly, not an optional extra.

Leaf springs, airbags and load carrying at the rear

The N90 carries its load on rear leaf springs, and that is where a loaded ute sags first. There are two ways to fix it, and often they work together. Heavier constant load leaf springs raise the rear rate so the truck sits level with a permanent load like a canopy or tray. Air helper springs, such as a Polyair Bellows kit, let you add or release air to match a changing load, which suits owners who tow one weekend and run empty the next.

We also carry the parts that keep the rear working properly: heavy duty leaf spring bush kits, greasable shackle and pin kits, and WirelessOne or WirelessAir compressor kits so airbags can be adjusted from the cab or a phone. For towing, levelling the rear also restores headlight aim and steering weight, which makes the whole truck safer under load.

The takeaway: match the rear to your load with heavier leaf springs, airbags, or both, and keep the bushes and shackles fresh so the rear end stays controlled.

Buy online and have it fitted: Fulcrum Click & Fit

This is where Fulcrum is different from a parts only store. With Click & Fit you buy your N90 suspension online and have it professionally fitted at one of our workshops or over 200 national fitting partners. You are not left with a box of parts and a weekend of guesswork, and you are not paying to freight heavy kits back and forth.

Fitment matters more on suspension than almost any other upgrade. A lift that is not aligned wears tyres and steers poorly. A GVM kit that is not certified is not legal. Shocks and springs that are not matched ride badly. When we fit your kit we set ride height, align the truck, torque everything correctly, and hand back the compliance paperwork where a GVM upgrade is involved. Every product on our N90 page shows the fitted price alongside the part price, so you can see the all in cost up front.

The takeaway: Click & Fit means you buy the right kit online and we fit and align it properly, so the truck leaves set up correctly rather than just assembled.

Why Fulcrum for your N90 Hilux suspension

The picture is simple: buying and fitting your N90 kit through Fulcrum gives you the widest choice, expert setup, and the legal paperwork, all from one specialist. That is the difference between a truck that is assembled and one that is set up.
