Three generations, three different answers. The N70 tolerated 50mm on long front CV shafts. The N80 narrowed the margin. The N90 reaches its safe operating angle earlier again, so we recommend a diff drop at 2 inches on the new ute where the older ones had more room.
If you have owned Hiluxes across generations, this is the article that explains why the advice you were given last time is not the advice you are getting now. Nothing has changed about how a CV joint works. What changed is the front end it sits in. Our diff drop kits carry a different part for each generation for exactly that reason.
The two measurements that moved
Every generational difference in this topic comes back to the same pair of numbers.
Front CV shaft length: A longer shaft spreads the same vertical change over a longer horizontal run, so it generates less angle per millimetre of lift. Shorten it and the safe lift height falls with nothing else changing.
Factory standing operating angle: A platform that already sits steeper at design ride height has less headroom before it runs out. You are adding to a bigger starting number.
Across N70, N80 and N90 both of these have moved in the direction that reduces tolerance, driven by packaging. Wider tracks, repositioned differentials, larger sumps and crash structures, all of which take space that the CV shaft used to occupy.
Generation by generation
| Generation | Years | Front CV shaft length | Factory standing angle |
Angle at 50mm lift, no diff drop |
Our recommendation at 50mm |
|
N70 (GGN25R, KUN26R) |
2005-2015 |
~629mm – 630mm |
18.8 degrees at full droop |
Slightly steeper |
Diff drop recommended, but not necessary |
|
N80 (GGN125R, GUN126R, GUN136R) |
2015-2025 |
~630mm |
No reliable data |
Outside our recommended range |
Fit a diff drop |
|
N90 |
2025-on |
~630mm |
No reliable data |
Outside our recommended range |
Fit a diff drop |
N70, where the old advice came from
The N70 is the ute most of the "you don't need one under 3 inches" experience in Australia was built on. It was lifted in enormous numbers, it ran long front shafts, and plenty of 50mm N70s covered high kilometres without a front CV problem. The advice was reasonable on that platform. It is also the reason the belief is so entrenched, because a lot of people have first hand experience backing it up.
N80, where the margin narrowed
Packaging changes tightened things. We still fit plenty of 50mm N80s and we still see N80s at that height running well, but the margin is smaller than it was and the answer moves around more with tyre size, front accessory weight and how the vehicle is used. This is the generation where "it depends" became the honest answer rather than a hedge.
N90, where the answer changed
On the 2025 on N90 the shafts are shorter and the standing angle steeper again. A 50mm lift takes the front CV angle past where we are willing to sign off a build, at normal ride height rather than only at full droop. That is why we recommend the TRC9023 diff drop on any 2 inch lifted N90, and it is a genuine change in position rather than an upsell that appeared with a new model.
The parts, by generation
| Generation | Kit | Part | Kit only |
Fitted |
|

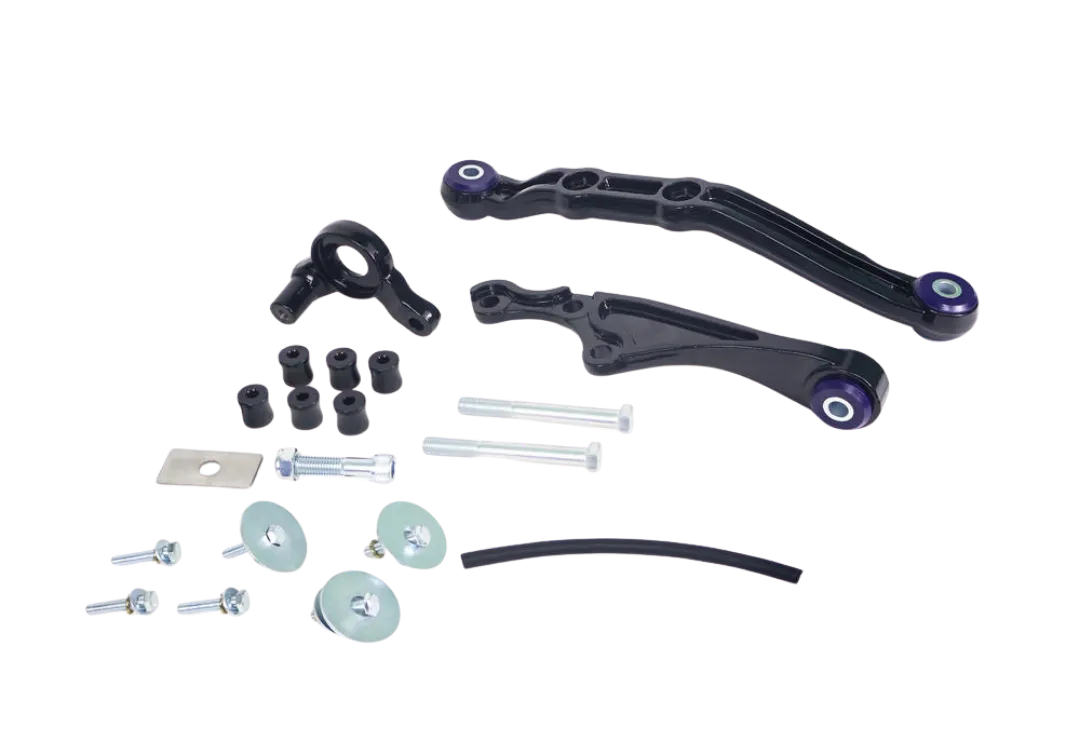

N70 and N80, 2005-2025 |
Front Differential Drop Kit |
$485.00 |
$873.00 |
|
|

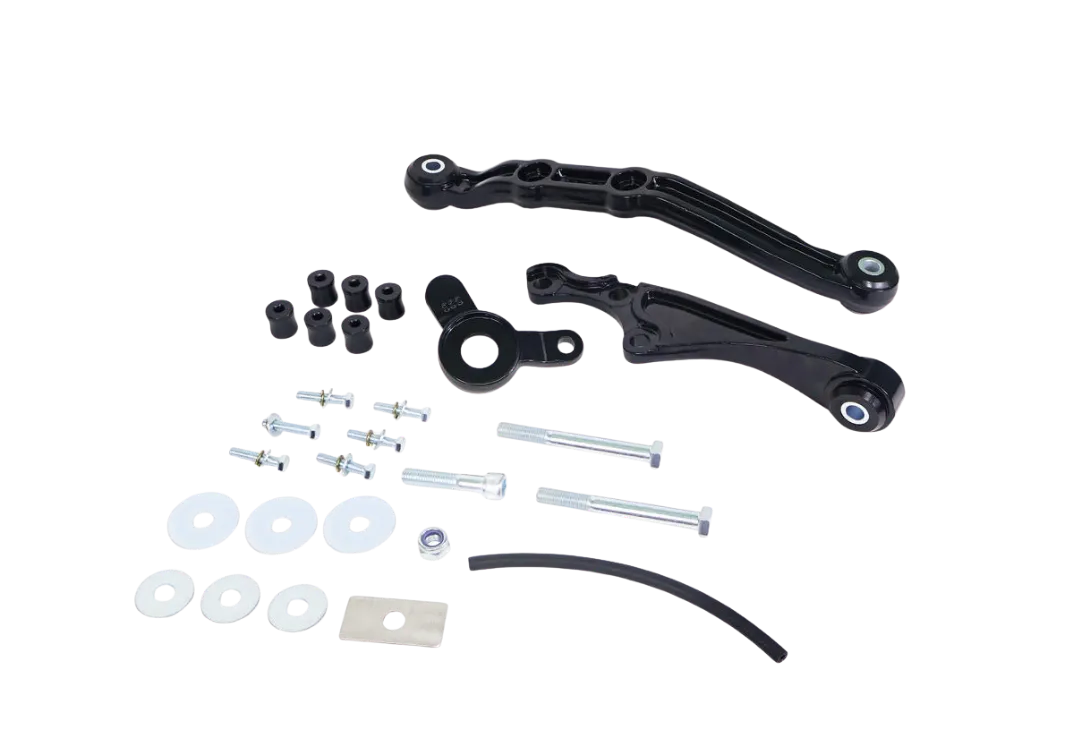

Fortuner and HiLux N70, N80 |
Front Differential Drop Kit |
$478.50 |
$866.50 |
|
|

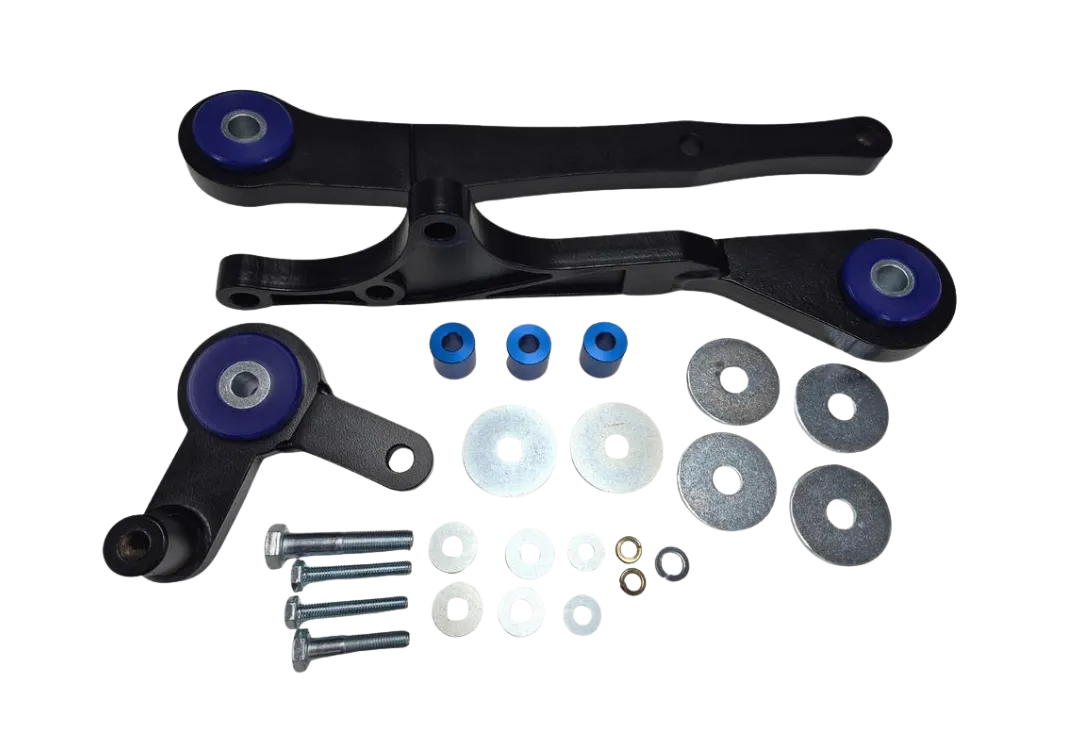

N90, 2025-on |
Front Differential Drop Kit |
$590.00 |
$1,068.00 |
Prices AUD, current at time of writing. The N90 kit is preorder with stock due 23 November 2026. The W93578 kit is preorder with stock due 11 September 2026.
We also list fitment for the N80 GR Sport and the N80 Rogue wide body variants.
Why we changed our advice, and why that is not a red flag
Being told "we used to say you didn't need this and now we say you do" sounds like a sales tactic. We understand why. So here is the test you should apply to us.
If the reason we give is generic, be sceptical. If the reason is a specific, checkable change in a specific measurement on a specific platform, then it is engineering. Our reason is that the front CV shafts are shorter and the standing angle is steeper on the N90 than on the utes before it, and that these are measurable figures we will publish. If those numbers do not hold up, the recommendation does not either.
That is also why our advice is not "all 2 inch lifts need a diff drop". We say the N90 does at that height. On other platforms the answer is different, and we are happy to say no where the measurement says no.
FAQs
Looking for more information about 4x4 lift kits and suspension? Below we answer the most commonly asked questions
Why does the N90 Hilux need a diff drop at 2 inches when the N70 did not?
Do I need a diff drop for a 2 inch lift on an N80 Hilux?
Does the same diff drop kit fit an N70 and an N80?
Which diff drop kit fits the N90 Hilux?
Is there a kit for the N80 GR Sport or Rogue wide body?
Why did Fulcrum's advice change between generations?
Does a bigger tyre change the answer on any of these?
Will there be a kit for the new Fortuner on the N90 platform?
Tell us your generation, lift height and tyre size and we will give you the answer for your ute. See the diff drop kits for every Hilux generation we cover.
