The N90 Hilux reaches its safe front CV operating angle earlier than the utes before it, because the factory shafts are shorter and the standing angle starts steeper. At a 2 inch lift the front CVs run past where we are comfortable leaving them, so an N90 diff drop is not optional on our recommendation.
We have had this argument in our comments for months, so here is our answer with the geometry attached. If you are lifting a 2025 on N90 Hilux by 2 inches, we recommend an N90 diff drop, and the reason has nothing to do with what worked on your last ute. Our full range of diff drop kits covers the N90 along with the platforms it replaced.
What actually changed on the N90 front end
Two numbers decide whether a front CV joint is happy: how long the shaft is, and what angle it sits at before you touch anything. Short shaft, steep starting angle, and you have very little room left to give away. That is the position Toyota's new platform starts from.
On the N90 the front differential and the lower control arm pickups sit in a package that leaves the CV shafts shorter than the N80 equivalent, and the standing operating angle steeper. A shorter shaft covers the same vertical travel over a smaller horizontal distance, so every millimetre of lift buys you more angle than it did on the older ute. Add 50mm of ride height and the angle you have added is bigger than the same 50mm added to an N70.
The N90 is not a slightly taller N80. The front geometry is a different starting point, and a rule of thumb built on the old one does not transfer.
What we measured, stock versus lifted
We put gauges on the shafts rather than arguing about it. Here is the shape of the result. Every figure below is a placeholder until engineering signs it off, and we will not publish it otherwise.
| Setup | Front CV operating angle at design height | Within our recommended limit |
|
N90 stock |
~630mm |
Yes |
|
N90 with 2 inch lift, no diff drop |
Outside our recommended range |
No |
|
N90 with 2 inch lift and diff drop |
Inside our recommended range |
Yes |
|
N80 with 2 inch lift, no diff drop |
Outside our recommended range |
No |
The column that matters is the last one. A 2 inch lift on an N90 without a diff drop puts the joint outside where we are willing to sign off a build, and it does it at normal ride height rather than only at full articulation.
Why we are not making a blanket claim about 2 inch lifts
We want to be straight about the limits of our own argument, because the scepticism in the comments is fair when brands overreach.
We are not saying every 4WD needs a diff drop at 2 inches. Plenty of platforms do not need one at that height. An IFS platform with long front shafts and a shallow standing angle can absorb 50mm without getting close to trouble, and we sell lift kits for vehicles where we do not recommend a diff drop at that height. Our own threshold, published on our diff drop kits pages, is 2 inches or more on IFS vehicles, and it is a starting point for a conversation rather than a law.
What we are saying is narrower and harder to argue with. On this platform, at this height, the measurement says fit one. If your ute measures differently, we will tell you that too.
The N90 kit, and what it costs
We put gauges on the shafts rather than arguing about it. Here is the shape of the result. Every figure below is a placeholder until engineering signs it off, and we will not publish it otherwise.
| Setup | Front CV operating angle at design height | Within our recommended limit | Fitted with Click and Fit |
|
Front Differential Drop Kit to suit Toyota HiLux N90 2025-on |
TRC9023 |
$590.00 |
$1,068.00 |
|
Front Differential Drop Kit to suit Toyota HiLux N70 and N80 2005-2025 |
TRC9007 |
$485.00 |
$873.00 |
Prices in AUD, current at time of writing. The N90 kit is on preorder with stock due 23 November 2026.

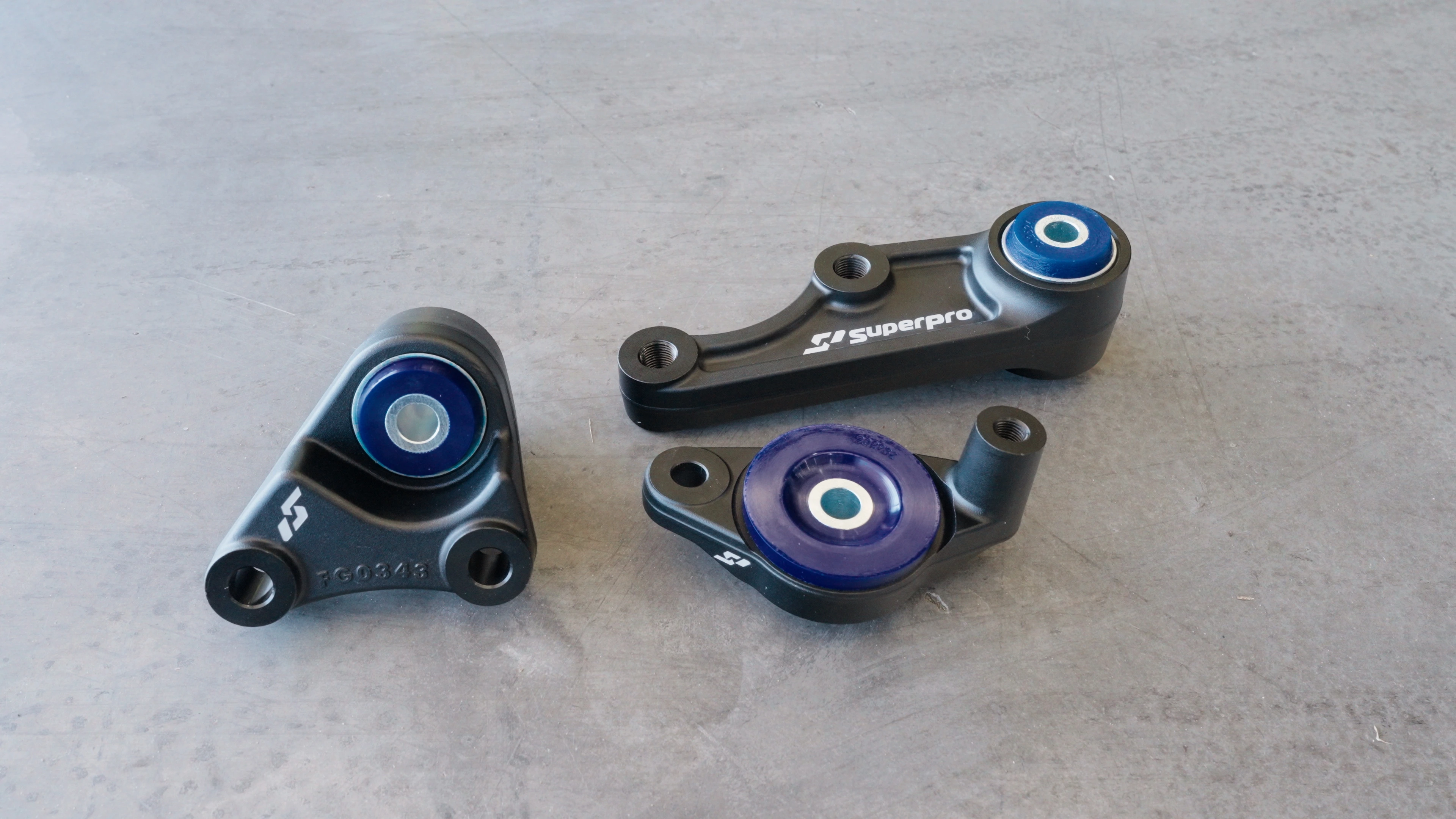

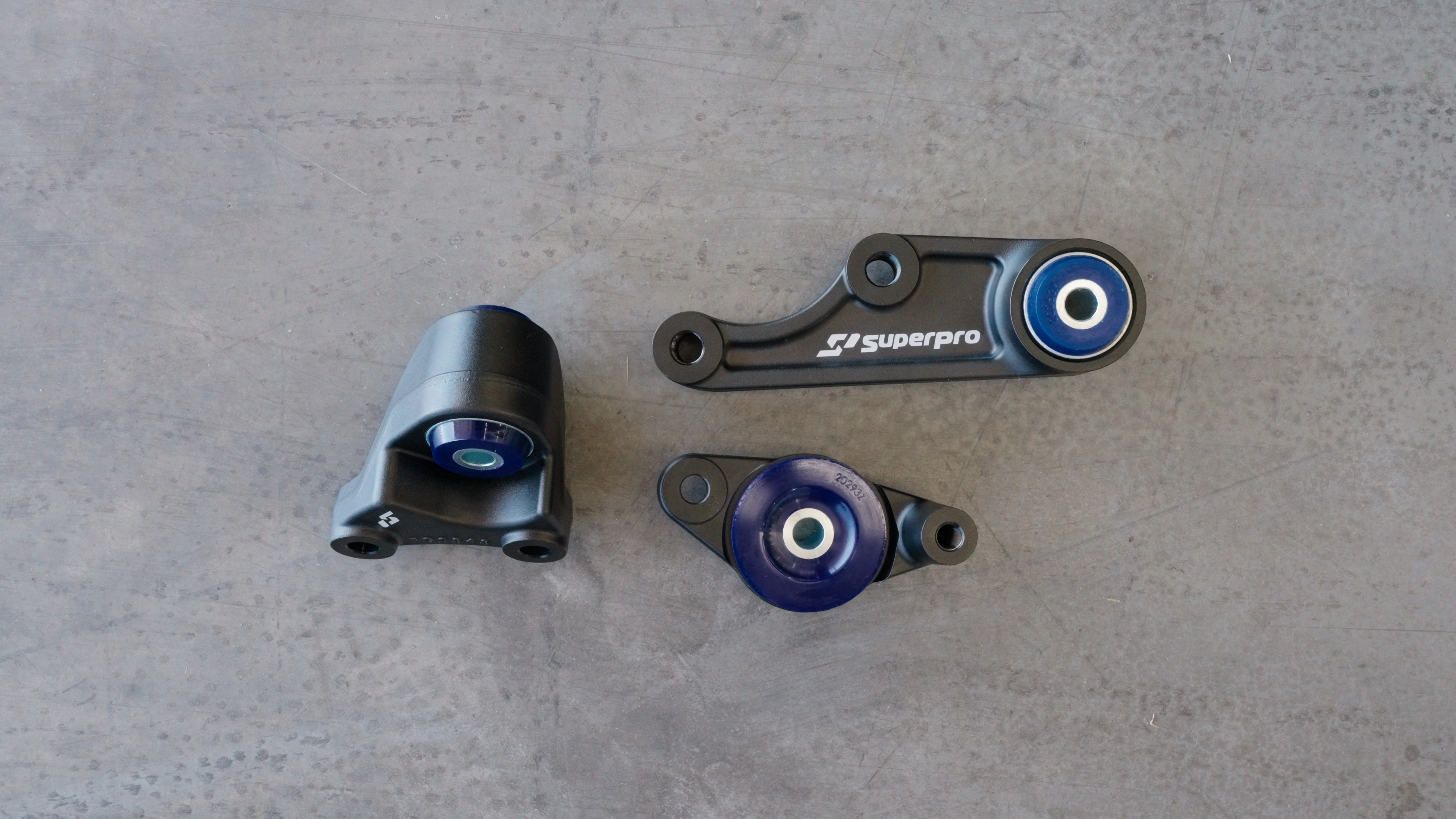

The kit lowers the front differential and its mounting points as an assembly, which pulls the inner CV pivot back down toward where the outer one sits. SuperPro kits in our range drop the diff by approximately 25mm or more, and that is enough to bring a 2 inch lift back inside a sensible angle without touching the rest of the build. You can have it fitted at any of our 200 plus Click and Fit locations at the same time as the lift, which is the cheapest moment to do it because the front end is already apart.
FAQs
Looking for more information about 4x4 lift kits and suspension? Below we answer the most commonly asked questions
Why does the N90 Hilux need a diff drop at 2 inches when the N70 did not?
Do I need a diff drop for a 2 inch lift on an N80 Hilux?
Does the same diff drop kit fit an N70 and an N80?
Which diff drop kit fits the N90 Hilux?
Is there a kit for the N80 GR Sport or Rogue wide body?
Why did Fulcrum's advice change between generations?
Does a bigger tyre change the answer on any of these?
Will there be a kit for the new Fortuner on the N90 platform?
Tell us your generation, lift height and tyre size and we will give you the answer for your ute. See the diff drop kits for every Hilux generation we cover.
